Cold Storage High Speed Door
High-Speed Insulated Door Solutions for Cold Rooms, Freezers, and Cold Chain Logistics
YOHO Cold Storage High Speed Doors are engineered for temperature-controlled environments where fast access, thermal insulation, and reliable low-temperature performance are essential.
Featuring insulated multi-layer door curtains, anti-frost heating systems, and cold-resistant control technology, our doors help improve operational efficiency while minimizing energy loss in cold storage warehouses, freezer rooms, food processing plants, and pharmaceutical facilities.
Product Highlights
Engineered for Reliable Cold Chain Performance
Anti-Frost Heating System
Integrated heating in the top frame and guide rails prevents ice formation.
Multi-Layer Insulated Curtain
Three-layer PVC curtain with insulated core minimizes temperature exchange.
Fast Opening Speed
High-speed operation reduces cold air loss and improves workflow efficiency.
Cold-Resistant Control System
Low-temperature electrical components ensure reliable operation in freezing environments.
High Sealing Performance
Special sealing structure reduces air leakage and maintains stable temperatures.
Custom Manufacturing
Customized sizes, insulation thicknesses, and control systems are available.
What Is a Cold Storage High Speed Door?
Designed for Temperature-Controlled Industrial Environments

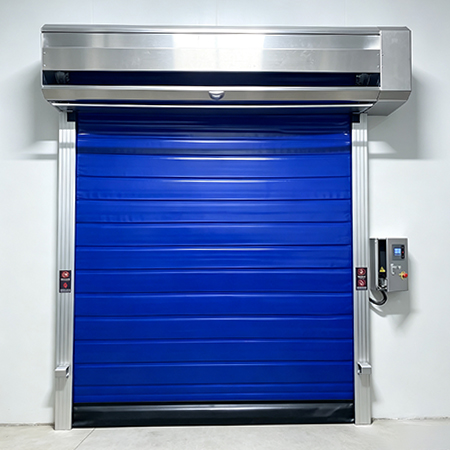

A Cold Storage High Speed Door is a specialized insulated industrial door developed for freezer rooms, cold storage warehouses, refrigerated logistics centers, and other low-temperature facilities.
Unlike standard PVC high speed doors, cold storage doors feature insulated multi-layer curtains, anti-frost heating systems, and cold-resistant electrical components that ensure reliable operation even under large temperature differences.
The fast opening and closing speeds reduce cold air loss, helping facilities improve energy efficiency while maintaining smooth logistics operations.
Cold Storage High Speed Door
Why Cold Storage Doors Matter
Improve Cold Chain Efficiency While Reducing Energy Costs
Maintaining stable temperatures is one of the biggest challenges in cold storage operations. Every unnecessary door opening increases energy consumption, creates frost build-up, and reduces operational efficiency.
YOHO Cold Storage High Speed Doors help:
Reduce Cold Air Loss
Fast opening minimizes temperature exchange.
Prevent Frost Formation
Integrated heating systems eliminate freezing around the tracks.
Improve Traffic Flow
Suitable for high-frequency forklift operations.
Lower Energy Consumption
Reduce refrigeration workload and operating costs.
Anti-Frost Heating System
Reliable Heating Protection for Low-Temperature Operation
Designed to Prevent Ice Build-Up and Ensure Continuous Performance
Heated Top Frame
Keeps the upper structure free from frost.
Heated Guide Rails
Maintains smooth curtain movement.
Waterproof Electrical Protection
Stainless steel control box with waterproof junction box and leakage protection.
IP54 Control System
Designed for stable operation in cold and humid environments.
Door Curtain Structure
The Secret of Success
Multi-Layer Insulation for Maximum Thermal Efficiency
Triple-Layer PVC Curtain
Durable low-temperature PVC fabric maintains flexibility in freezing environments.
Double Insulation Core
Integrated insulation layers improve thermal resistance.
Optional Curtain Thickness
18 mm / 20 mm /23 mm
Optional
Bottom Sealing System
Aluminum profile, rubber gasket, and fabric pocket provide excellent sealing.
Product Structure & Features
Built for Reliable Cold Storage Performance
Multi-Layer Insulated Curtain
Multi-layer insulated curtain reduces heat transfer and improves thermal efficiency.
Anti-Frost Heating System
Integrated heating prevents ice build-up and ensures smooth door operation.
Stainless Steel Frame
Corrosion-resistant frame delivers reliable performance in cold and humid environments.
Cold-Resistant Control System
Low-temperature electrical components provide stable operation with IP54 protection.
Technical Specifications
Product Parameters
| Item | Specification |
|---|---|
| Door Type | Cold Storage High Speed Door |
| Temperature | Below 0°C |
| Door Size | 1000–4000 mm |
| Curtain Material | Triple-Layer PVC |
| Curtain Thickness | 18 / 20 / 23 mm |
| Frame Material | Stainless Steel |
| Guide Rail | Aluminum Alloy |
| Heating System | Top Frame + Side Guides |
| Opening Speed | 0.6–1.2 m/s |
| Closing Speed | 0.6 m/s |
| Motor Power | 1.5–3.8 KW |
| Protection Class | IP54 |
| Activation | Waterproof Push Button / Radar / Remote / Loop Detector |
| Safety System | Infrared Sensors |
Applications
Designed for Various Cold Chain Facilities

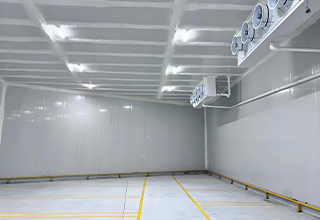

Cold Storage Warehouses
Maintain stable temperatures while improving logistics efficiency.

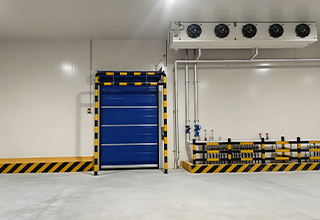

Freezer Rooms
Prevent ice accumulation and reduce refrigeration loss.

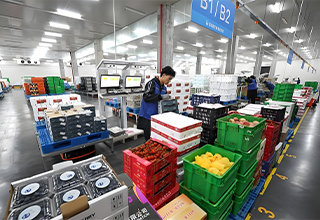

Fresh Food Distribution Centers
Support high-frequency traffic while protecting product quality.

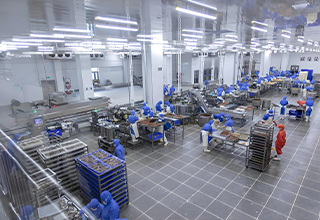

Frozen Food Processing Plants
Provide reliable separation between production zones.

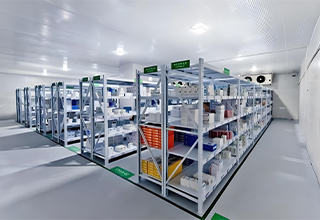

Pharmaceutical Cold Rooms
Suitable for temperature-sensitive storage environments.

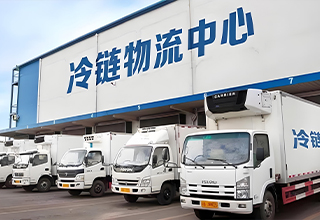

Cold Chain Logistics Centers
Improve loading efficiency while reducing energy consumption.
Custom Manufacturing
Customized Solutions for Different Cold Storage Projects
YOHO provides complete customization based on:
OEM and ODM solutions are available for distributors, contractors, and cold chain projects worldwide.
Why Choose YOHO?
Professional Cold Storage Door Manufacturer in China
YOHO specializes in high-performance industrial doors designed for demanding environments.
Our cold storage doors combine advanced insulation technology, anti-frost systems, and reliable engineering to help customers improve operational efficiency while reducing refrigeration costs.
Manufacturing Facility
1,000+㎡
Skilled Employees
100+
Export Countries
100+
Years Experience
15+
Related Products
Complete Industrial Access Solutions
F.A.Q.
Frequently Asked Questions
An industrial sectional overhead door is a vertical opening door system made of insulated panels, commonly used in warehouses, factories, and loading areas.
Heating elements installed in the top frame and guide rails prevent ice build-up and ensure smooth door operation.
18 mm, 20 mm, and 23 mm insulated curtains are available depending on the required thermal performance.
Yes. We provide customized dimensions, heating systems, insulation thicknesses, and control options.
Looking for a Reliable Cold Storage High Speed Door Manufacturer?
YOHO provides factory-direct insulated high speed doors designed for cold storage, freezer rooms, and refrigerated logistics facilities.
Contact our engineering team today for a customized cold chain door solution.
