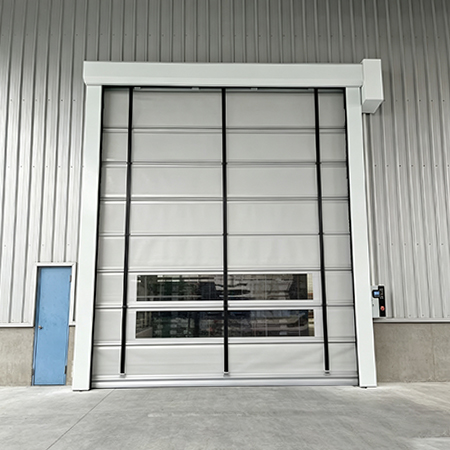

High Speed Folding Door
Heavy-Duty High Speed Folding Door for Large Industrial Openings
High Speed Folding Door is specially designed for large industrial entrances where high wind resistance, fast operation, and reliable performance are essential. Featuring a vertical stacking curtain system, reinforced aluminum wind bars, and durable PVC fabric, it is ideal for wide and tall openings that exceed the capacity of conventional roll-up doors.
With customizable dimensions up to 12 meters in height, this door is widely used in logistics centers, warehouses, aircraft hangars, manufacturing plants, recycling facilities, and other industrial environments requiring large-scale access solutions.
Product Highlights
Built for Large Openings and High Wind Resistance
Large Door Openings
Supports door heights up to 12 meters, ideal for oversized industrial entrances.
High Wind Resistance
Reinforced aluminum wind bars provide excellent stability in demanding outdoor conditions.
Fast Operation
Adjustable opening speed up to 1.2 m/s improves workflow and reduces waiting time.
Durable PVC Curtain
High-strength PVC fabric is available in multiple colors and thicknesses from 0.8–1.5 mm.
Excellent Dust Protection
Brush-sealed guide rails reduce dust infiltration and improve environmental separation.
Custom Manufacturing
Available in customized dimensions, frame materials, colors, and control systems.
What Is a High Speed Folding Door?
Designed for Oversized Industrial Entrances
A High Speed Folding Door, also known as a High Speed Stacking Door, uses a vertical stacking system instead of a traditional rolling shaft. As the door opens, the PVC curtain folds neatly upward, allowing stable operation on very large openings.
Compared with standard PVC High Speed Doors, folding doors provide greater wind resistance and are suitable for wider and taller industrial entrances.
They are commonly selected for logistics centers, heavy manufacturing plants, warehouses, aircraft hangars, and facilities with frequent truck traffic.
Product Structure & Features
Engineered for Large-Scale Industrial Performance
Reinforced Folding Curtain
The flexible PVC curtain is reinforced with aluminum wind bars to maintain stability during high-speed operation.
Heavy-Duty Frame System
High-quality galvanized steel tracks ensure stable door movement and reliable operation during daily use.
Brush Sealing System
Integrated brush seals reduce dust penetration while ensuring smooth curtain movement.
Intelligent Drive System
High-performance motors ranging from 0.5–3.7 kW deliver reliable operation for different door sizes.
Technical Specifications
Product Parameters
| Item | Specification |
|---|---|
| Door Type | High Speed Folding Door |
| Maximum Height | Up to 12,000 mm |
| Frame Material | Powder-Coated Galvanized Steel / SUS304 Stainless Steel |
| Curtain Material | Industrial PVC Fabric |
| Curtain Thickness | 0.8 / 1.2 / 1.5 mm |
| Opening Speed | 0.6–1.2 m/s (Adjustable) |
| Closing Speed | 0.6 m/s |
| Wind Resistance | Reinforced Aluminum Wind Bars |
| Sealing System | Brush Seals in Side Guides |
| Motor Power | 0.5–3.7 KW |
| Curtain Colors | Multiple Colors Available |
Why Choose a High Speed Folding Door?
The Ideal Solution for Large Industrial Access
Accommodates Large Openings
Perfect for oversized entrances that exceed the limits of standard roll-up doors.
Improved Wind Resistance
Reinforced curtain structure ensures stable operation in windy environments.
Faster Logistics Flow
High opening speed reduces waiting time for trucks, forklifts, and industrial vehicles.
Better Dust Protection
Sealed guide rails help maintain cleaner working environments.
Long Service Life
Heavy-duty components are designed for frequent industrial use.
Flexible Customization
Door size, colors, frame materials, and control systems can be tailored to project requirements.
Applications
Designed for Large Industrial Facilities

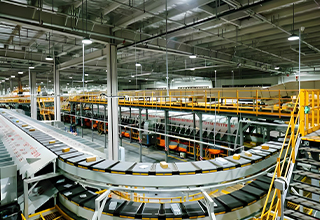

Logistics Centers
Efficient access for large freight vehicles and high-volume operations.

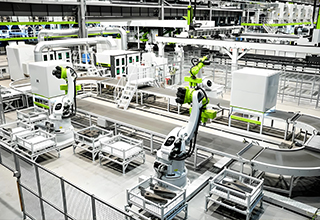

Manufacturing Plants
Separate production areas while supporting continuous material flow.

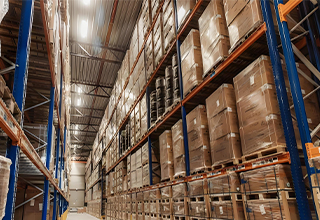

Warehouses
Improve truck and forklift traffic efficiency.

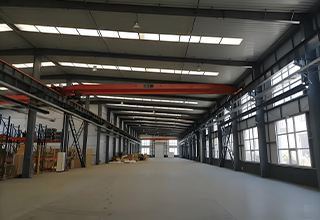

Recycling Facilities
Suitable for harsh industrial environments with large equipment movement.

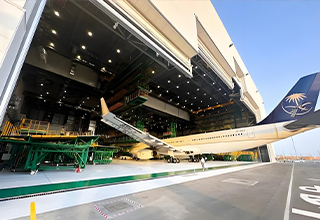

Aircraft Hangars
Accommodate oversized entrances with reliable wind resistance.

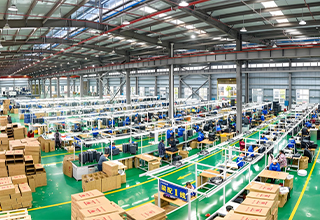

Industrial Workshops
Provide efficient access for large machinery and vehicles.
Custom Manufacturing
Tailored to Your Project Requirements
YOHO offers customized High Speed Folding Door solutions based on:
OEM and ODM services are available for distributors, contractors, and industrial projects worldwide.
Why Choose YOHO?
Professional Sectional Door Manufacturer in China
Changzhou YOHO Industrial Door Co., Ltd., specializing in industrial high speed doors and loading dock equipment since 2008.
With advanced manufacturing facilities, experienced engineers, and strict quality control, we provide factory-direct industrial door solutions for customers in more than 100 countries and regions.
Manufacturing Facility
1,000+㎡
Skilled Employees
100+
Export Countries
100+
Years Experience
15+
Related Products
Complete Industrial Door Solutions
F.A.Q.
Frequently Asked Questions
A High Speed Folding Door is a large industrial door that uses a vertical stacking curtain system, making it ideal for oversized openings and demanding environments.
The maximum door height can reach 12 meters, with customized widths available according to project requirements.
Yes. Reinforced aluminum wind bars provide excellent wind resistance for both indoor and outdoor applications.
They are widely used in warehouses, logistics centers, manufacturing plants, aircraft hangars, recycling facilities, and heavy industrial buildings.
Looking for a High Speed Folding Door Manufacturer?
Whether you need a standard folding door or a customized large-opening solution, YOHO provides factory-direct manufacturing, engineering support, and OEM services for industrial projects worldwide.
Our team is ready to recommend the most suitable solution for your application.
